Micro Cubes with Ice Transport System

Ice Makers » Micro Cubes with Ice Transport System

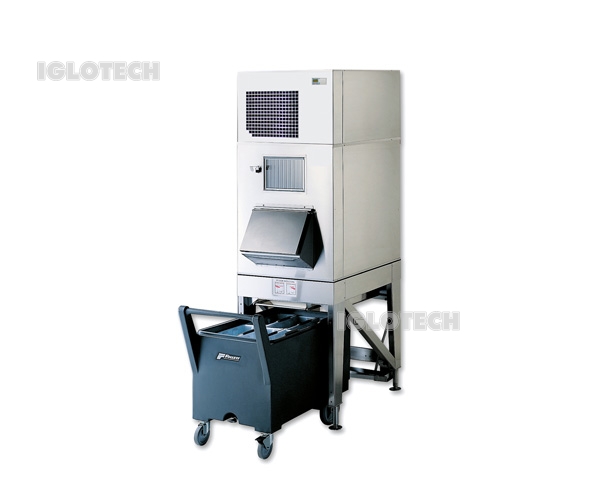

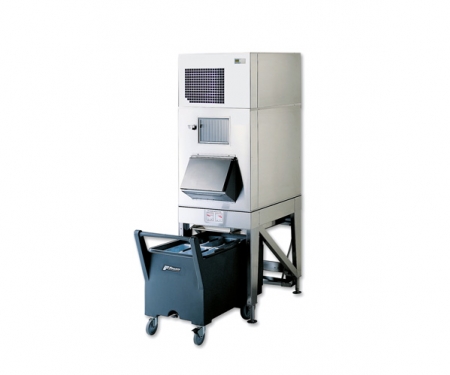

Micro Cubes M 200 LF

Micro Cubes M 200 LF


7x7x7mm Micro Cubes

7x7x7mm Micro Cubes


Technical parameters:

Models

Dimension [mm]

H x W x D

Output [kg/day]Storage Capacity [kg]Weight [kg]
M 120 LF 1735 x 790 x 1020 120 45*/109** 173
M 120 WF 1735 x 790 x 1020 120 45*/109** 173
M 120 ZF 1735 x 790 x 1020 120 45*/109** 156
M 200 LF 2065 x 800 x 1020 200 227*/109** 244
W 200 WF 2065 x 800 x 1020 200 227*/109** 240
W 200 ZF 2065 x 800 x 1020 200 227*/109** 214
M 400 LF 2445 x 800 x 1220 400 318*/109** 284
M 400 WF 2445 x 800 x 1220 400 318*/109** 270
M 400 ZF 2445 x 800 x 1220 400 318*/109** 235
M 800 LF-1 2445 x 800 x 1220 800 318*/109** 312
M 800 WF-1 2445 x 800 x 1220 800 318*/109** 316
M 800 ZF-1 2445 x 800 x 1220 800 318*/109** 266
M 800 LF-2 2445 x 1525 x 1220 800 612*/218** 484
M 800 WF-2 2445 x 1525 x 1220 800 612*/218** 488
M 800 ZF-2 2445 x 1525 x 1220 800 612*/218** 438

* - Ice stograge in temporary storage bin.
** - Ice stograge in transport cart.

Ice-making system: Freezing cylinder with spiral conveyor and pressing core.

Type of ice:

  • 7 x 7 x 7 mm micro cubes



Cooling:

  • L = air-cooled
  • W = water-cooled
  • Z = connection to existing central cooling system



Description:

  • stainless steel housing
  • power supply 400V / 50Hz
  • Models M 800 LF-1/WF-1/ZF-1 are equipped with one ice transport cart
  • Models M 800 LF-2/WF-2/ZF-2 are equipped with two ice transport carts
  • recommended ambient temperature for air cooled units +10 to +30°C
  • recommended ambient temperature for water cooled units +10 to +45°C
  • 1 year full warranty service and after warranty service provided



Available options:

  • Models L can be prepared for attachment to a remote condenser.



Installation information: From a drinking water hardness of 12°dH or a conductivity of 350 μs/cm, the use of appropriately treated water is necessary.



Performance data of all models at ambient temperature of 15°C, water temperature of 10°C (air-cooled appliances) and condensing temperature of 20°C (water-cooled appliances). The capacity of the storage bins and dispensers in kg represents the complete utilization of the entire bin volume available.
