Ice Dispensers

Ice Makers » Ice Dispensers

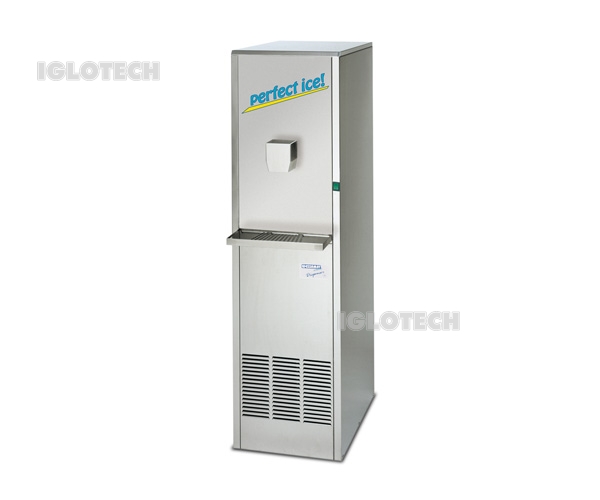

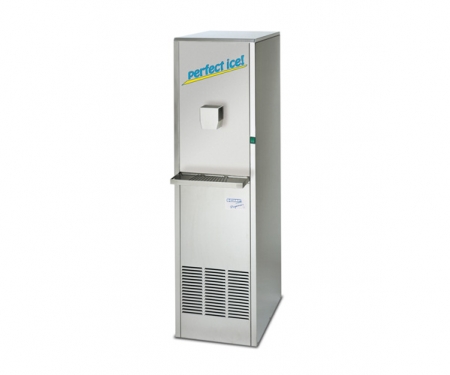

D 30 EL

D 30 EL

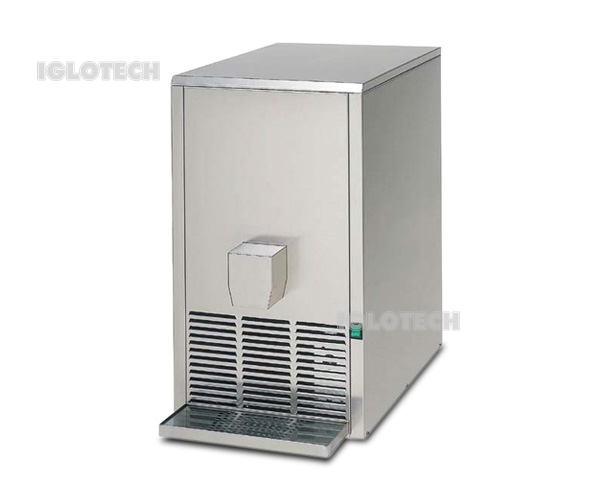

DT 30 EL

DT 30 EL

Full Ice Cone

Full Ice Cone


Technical parameters:

Models

Dimension [mm]

H x W x D

Output [kg/day]Storage Capacity [kg]Weight [kg]
D 30 EL 1517 x 420 x 660 30 13 59
DT 30 EL 727 x 420 x 660 30 13 46

Ice-making system: Spraying technology

Cooling:

  • L = air-cooled



Description:

  • stainless steel housing
  • power supply 230V / 50Hz
  • recommended ambient temperature for air cooled units +10 to +30°C
  • 1 year full warranty service and after warranty service provided



Installation information: From a drinking water hardness of 12°dH or a conductivity of 350 μs/cm, the use of appropriately treated water is necessary.



Performance data of all models at ambient temperature of 15°C, water temperature of 10°C (air-cooled appliances) and condensing temperature of 20°C (water-cooled appliances). The capacity of the storage bins and dispensers in kg represents the complete utilization of the entire bin volume available.
