Combi Line with Ice Transport System

Ice Makers » Combi Line with Ice Transport System

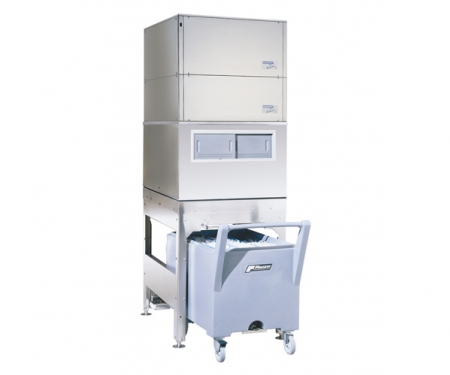

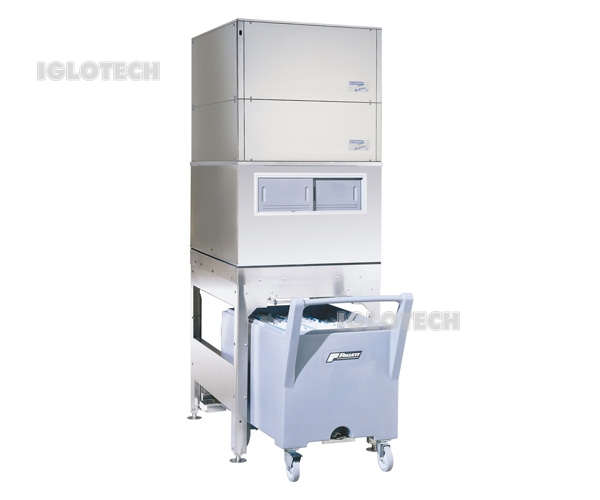

W 120 CLF/CWF

W 120 CLF/CWF


Hollow Ice Cone

Hollow Ice Cone


Technical parameters:

Models

Dimension [mm]

H x W x D

Output [kg/day]Storage Capacity [kg]Weight [kg]
W 120 ELF 1595 x 790 x 1020 126 45*/109** 166
W 120 EWF 1595 x 790 x 1020 126 45*/109** 166
W 120 CLF 1915 x 790 x 1020 126 45*/109** 204
W 120 CWF 1915 x 790 x 1020 126 45*/109** 204
W 240 ELF 2045 x 890 x 1020 240 227*/109** 270
W 240 EWF 2045 x 890 x 1020 240 227*/109** 270
W 240 CLF 2445 x 890 x 1020 240 227*/109** 315
W 240 CWF 2445 x 890 x 1020 240 227*/109** 315

* - Ice stograge in temporary storage bin.
** - Ice stograge in transport cart.

Ice-making system: Wave technology

Model designations / types of ice:

  • EL, EW = ice cones
  • CL, CW = crushed ice
  • F = mobile storage bin (ice transport cart)



Cooling:

  • EL, CL = air-cooled
  • EW, CW = water-cooled



Description:

  • stainless steel housing
  • transport cart made of plastic
  • power supply 230V / 50Hz
  • recommended ambient temperature for air cooled units +10 to +30°C
  • recommended ambient temperature for water cooled units +10 to +45°C
  • 1 year full warranty service and after warranty service provided



Available options:

  • All EL, CLmachines can be prepared for attachment to a remote condenser.
  • All models can also be prepared for the connection to a central cooling system.





Performance data of all models at ambient temperature of 15°C, water temperature of 10°C (air-cooled appliances) and condensing temperature of 20°C (water-cooled appliances). The capacity of the storage bins and dispensers in kg represents the complete utilization of the entire bin volume available.
