Flake Line - Nugget Ice

Ice Makers » Flake Line - Nugget Ice

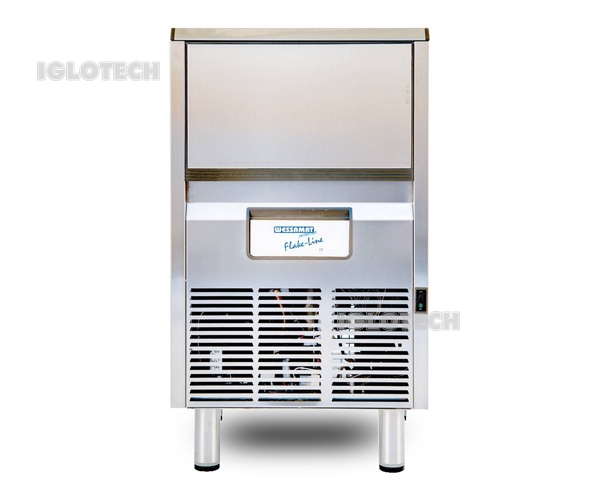

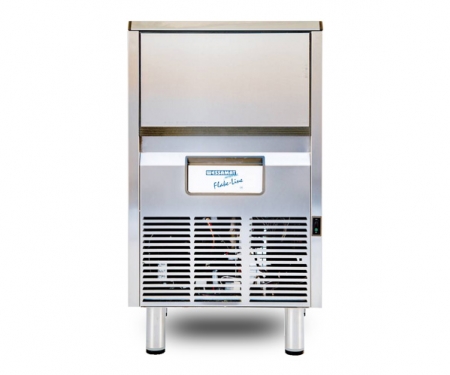

NF 80 L

NF 80 L

Technical parameters:


Dimension [mm]

H x W x D

Output [kg/day]Storage Capacity [kg]Weight [kg]
NF 80 L 860 x 490 x 620 80 25 55
NF 80 W 860 x 490 x 620 80 25 55

Ice-making system: Evaporator cylinder with screw conveyor


  • L = air-cooled
  • W = water-cooled



  • stainless steel housing
  • power supply 230V / 50Hz
  • Model NF 80 L can be mounted into counters completely, up to room temperature of 25°C
  • recommended ambient temperature for water cooled units +10 to +45°C
  • 1 year full warranty service and after warranty service provided



Installation information: From a drinking water hardness of 12°dH or a conductivity of 350 μs/cm, the use of appropriately treated water is necessary.


Performance data of all models at ambient temperature of 15°C, water temperature of 10°C (air-cooled appliances) and condensing temperature of 20°C (water-cooled appliances). The capacity of the storage bins and dispensers in kg represents the complete utilization of the entire bin volume available.
