I-Tatiana Z, I-Tatiana ZS

Serve Over Counters » Refrigerated Serve Overs » I-Tatiana Z, I-Tatiana ZS

I-Tatiana Z*

I-Tatiana Z*


I-Tatiana ZS*

I-Tatiana ZS*

I-Tatiana Z

I-Tatiana Z

I-Tatiana ZS

I-Tatiana ZS

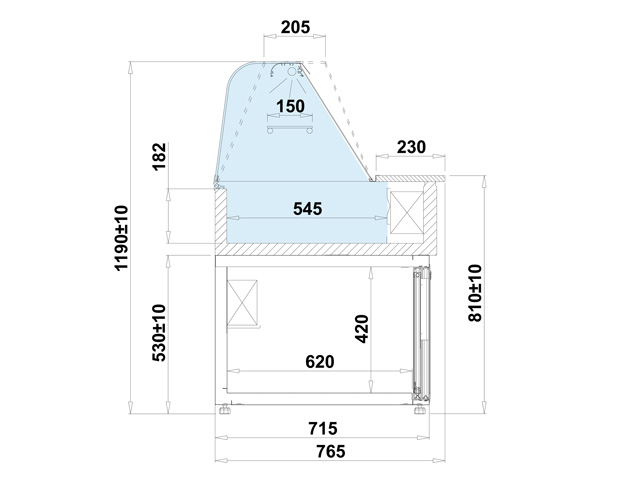

Technical parameters:

Models

Dimension [mm]

H x W x D

Display surface [m²]Power Consumption [kWh/24h]Weight [kg]
I-Tatiana Z 1.0 1190 x 990 x 765 0,50 3,40 115
I-Tatiana Z 1.3 1190 x 1300 x 765 0,67 3,50 130
I-Tatiana Z 1.5 1190 x 1500 x 765 0,77 3,50 150
I-Tatiana Z 1.7 1190 x 1700 x 765 0,88 3,60 160
I-Tatiana ZS 1.0 1210 x 990 x 765 0,50 3,40 75
I-Tatiana ZS 1.3 1210 x 1300 x 765 0,67 3,50 95
I-Tatiana ZS 1.5 1210 x 1500 x 765 0,77 3,50 110
I-Tatiana ZS 1.7 1210 x 1700 x 765 0,88 3,60 125





Description:

  • temperature range +1 / +8°C
  • preferred ambient temperature +16 / +25°C
  • power supply 230V / 50Hz
  • internal condensing unit
  • ecological polyurethane insulation
  • external housing made of white coated steel - from staff side
  • base and front made of powder coated steel - white
  • aluminium glass frames colour - choice of colours
  • display deck depth 545mm
  • exposition surface made of stainless steel
  • refrigerated under-storage made of white coated steel
  • 230mm width stainless steel worktop
  • electronic control with temperature display
  • automatic defrost system
  • static air circulation
  • curved front glass
  • perspex sliding door to rear
  • interior LED lighting in white colour
  • automatic condensate evaporation
  • 1 year full warranty service and after warranty service provided



Available options:

  • external top housing made of stainles steel
  • external bottom housing made of stainles steel
  • external top housing colour - optional colours
  • external bottom housing colour - optional colours
  • refrigerated under-storage made of stainless steel
  • LED light colour (meat)
  • LED light colour (confectionary)
  • additional exposition glass shelf (ambient)
  • set of wheels (castors)
  • movable partition (glass on stands, placed in exposition area)



Choice of colours:



Optional colours:

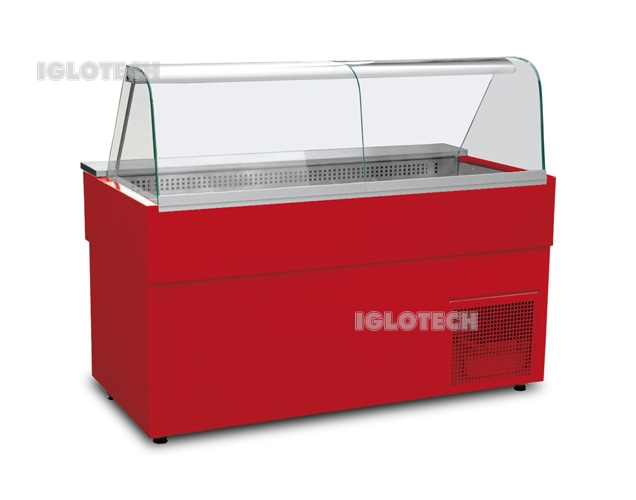

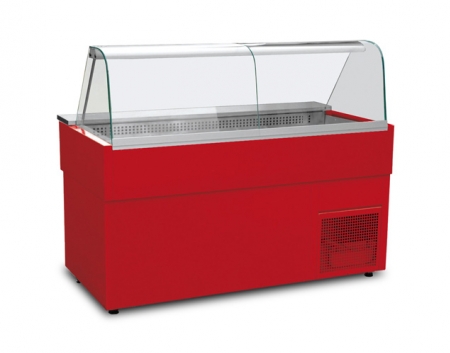

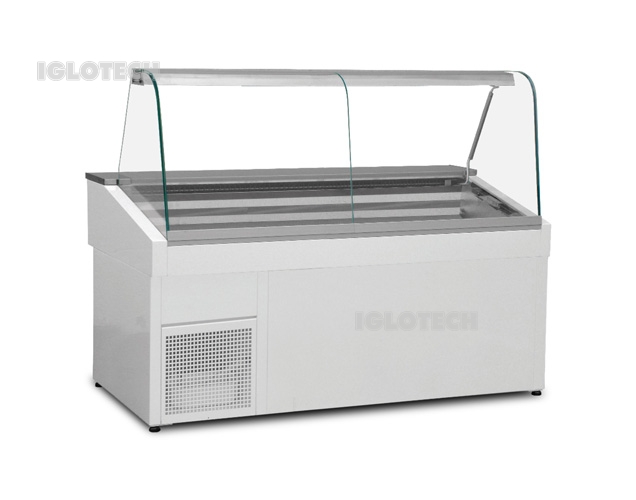

* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.
