I-Monica 2

Serve Over Counters » Refrigerated Serve Overs » I-Monica 2

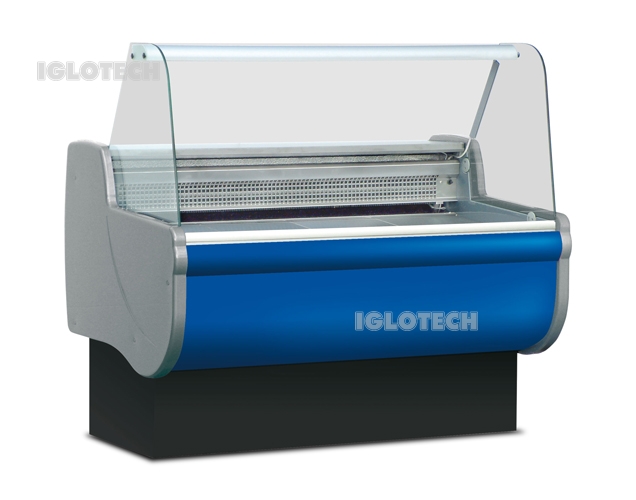

I-Monica 2*

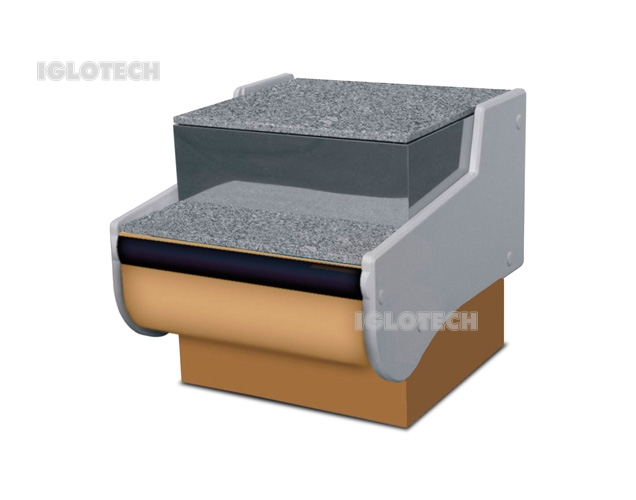

I-Monica 2 Cash Table*

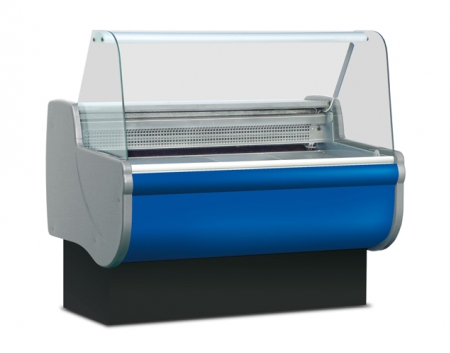

I-Monica 2

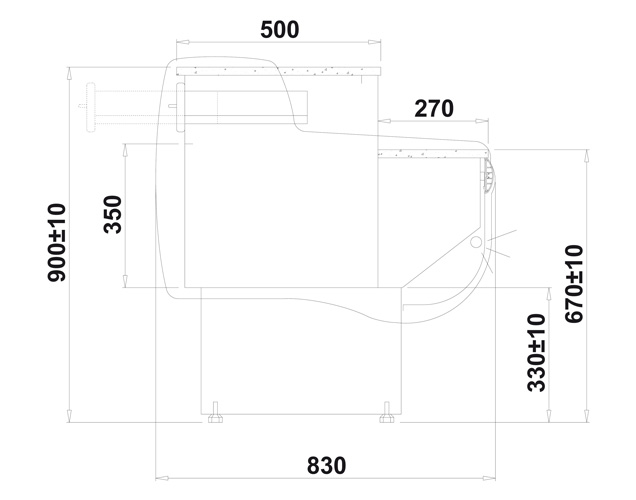

I-Monica 2 Cash Table

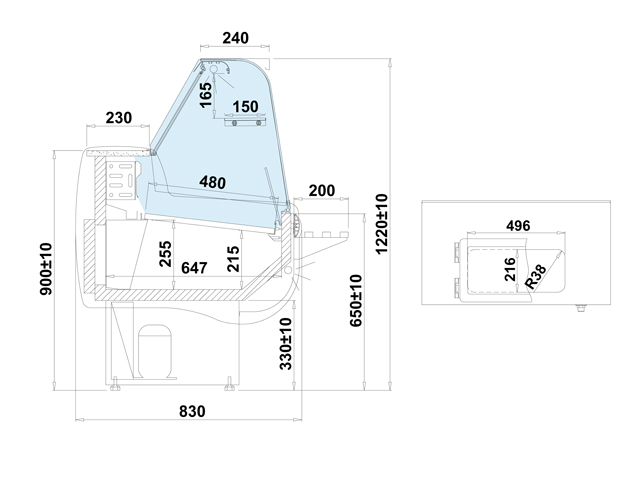

Technical parameters:

Models	Dimension [mm] H x W x D	Display surface [m²]	Power Consumption [kWh/24h]	Weight [kg]
I-Monica 2/1.0	1220 x 1070 x 830	0,50	3,10	110
I-Monica 2/1.3	1220 x 1310 x 830	0,60	3,30	130
I-Monica 2/1.5	1220 x 1510 x 830	0,70	3,50	150
I-Monica 2/1.7	1220 x 1710 x 830	0,80	4,20	170
I-Monica 2/2.0	1220 x 2050 x 830	1,00	4,40	190
I-Monica 2/2.5	1220 x 2520 x 830	1,25	4,80	220

Description:

temperature range +1 / +8°C
preferred ambient temperature +16 / +25°C
power supply 230V / 50Hz
internal condensing unit
ecological polyurethane insulation
external housing made of white coated steel - from staff side
base and front made of powder coated steel - white
aluminium glass frames colour - choice of colours
plastic front bumper - choice of colours
display deck depth 480mm
exposition surface made of powder coated steel (white colour)
refrigerated under-storage made of powder coated steel (white)
230mm width stainless steel worktop
electronic control with temperature display
automatic defrost system
static air circulation
curved front glass
interior LED lighting in white colour
water condensate tray
perspex sliding door to rear
ABS side walls (40mm thick) - choice of colours
1 year full warranty service and after warranty service provided

Available options:

external housing made of stainles steel (staff side)
front panel colour - optional colours
base colour - optional colours
illuminated front panel (LED perspex squares, dierent colours)
exposition area made of stainless steel
exposition area made of acid resistant stainless steel
storage chamber made of stainless steel
storage chamber made of acid resistant stainless steel
powder painted evaporator
worktop made of granite (grey) 20mm thick
worktop made of granite (blamoral) 20mm thick
worktop made of granite (black) 20mm thick
LED light colour (meat)
LED light colour (confectionary)
additional exposition glass shelf (ambient)
customer front shelf (aluminium prole gold or silver colour)
set of wheels (castors)
movable partition (glass on stands, placed in exposition area)
fixed top partition (high glass xed in exposition area)
automatic condensate evaporation
analog thermometer
socket with fuse

Choice of colours:

Optional colours:

* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.
