Technical parameters:
| Models |

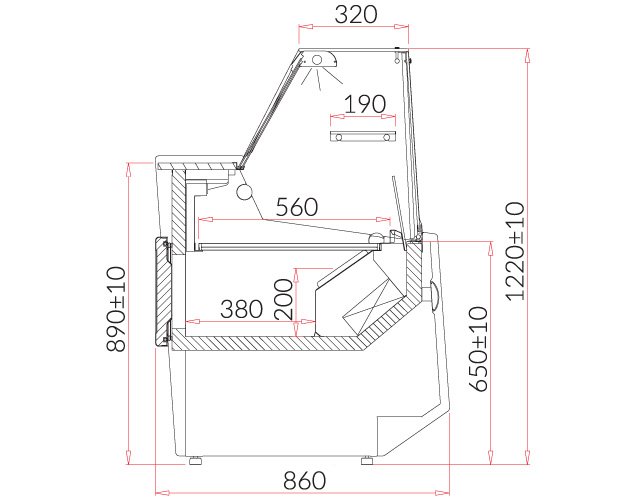

Dimension [mm]
H x W x D
| Display surface [m²] | Power Consumption [kWh/24h] | Weight [kg] |
|---|
| I-Pico DEEP 0.98 |
1220 x 1060 x 860 |
0,50 |
4,90 |
110 |
| I-Pico DEEP 1.22 |
1220 x 1300 x 860 |
0,60 |
4,90 |
130
|
| I-Pico DEEP 1.42 |
1220 x 1500 x 860 |
0,70 |
4,90 |
150 |
| I-Pico DEEP 1.62 |
1220 x 1700 x 860 |
0,80 |
5,00 |
170 |
| I-Pico DEEP 1.96 |
1220 x 2040 x 860 |
1,00 |
6,60 |
190 |
| I-Pico DEEP 2.44 |
1220 x 2520 x 860 |
1,25 |
6,60 |
220 |
Description:
- temperature range +1 / +8°C
- preferred ambient temperature +16 / +25°C
- power supply 230V / 50Hz
- internal condensing unit
- ecological polyurethane insulation
- external housing made of white coated steel - from staff side
- base and front made of powder coated steel - white
- aluminium glass frames colour - choice of colours
- display deck depth 560mm
- exposition surface made of white coated steel
- refrigerated under-storage made of white coated steel
- 230mm width worktop - made of stainless steel
- electronic control with temperature display
- automatic defrost system
- forced air circulation
- square front glass - openable
- interior LED lighting (meat colour)
- perspex sliding door to rear
- ABS side walls (40mm thick) - choice of colours
- 1 year full warranty service and after warranty service provided
Available options:
- multiplexing
- prepared to work with external condensing unit
- external housing made of stainles steel (staff side)
- front panel colour - optional colours
- base colour - optional colours
- front panel made of stainless steel
- base made of stainless steel
- exposition area made of stainless steel
- exposition area made of acid resistant stainless steel
- storage chamber made of stainless steel
- storage chamber made of acid resistant stainless steel
- powder painted evaporator
- worktop made of granite (grey) 20mm thick
- worktop made of granite (blamoral) 20mm thick
- worktop made of granite (black) 20mm thick
- LED light colour (white)
- LED light colour (confectionary)
- additional exposition glass shelf (ambient)
- customer front shelf (aluminium profile gold or silver colour)
- set of wheels (castors)
- small movable table (on rails)
- movable partition (glass on stands, placed in exposition area)
- fixed top partition (high glass fixed in exposition area)
- automatic condensate evaporation (internal condensing unit only)
- analog thermometer
- socket with fuse
Choice of colours:
Optional colours:

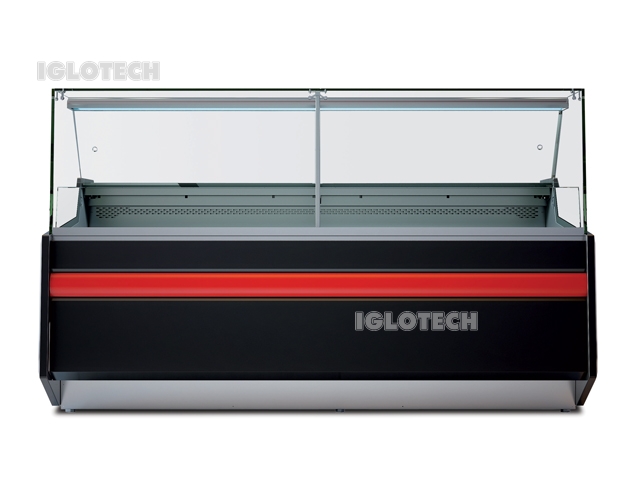

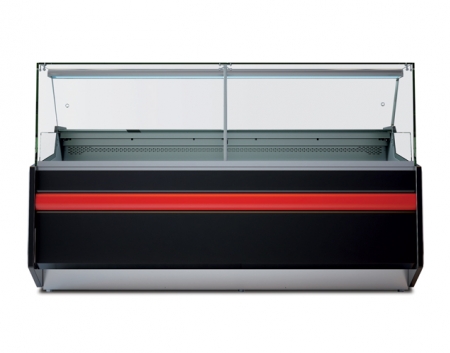

* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.
