I-Santiago S*

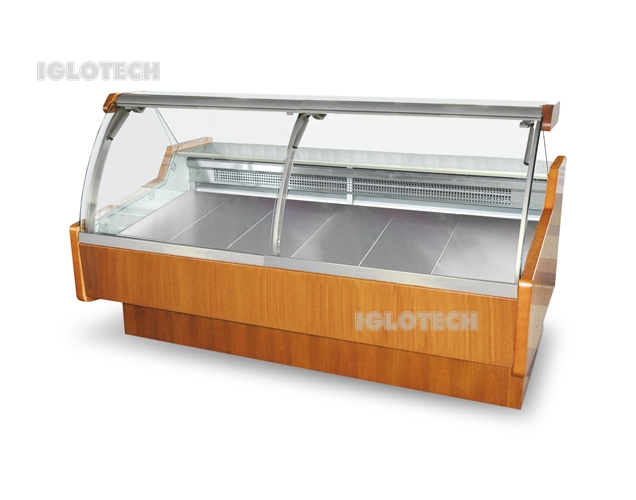

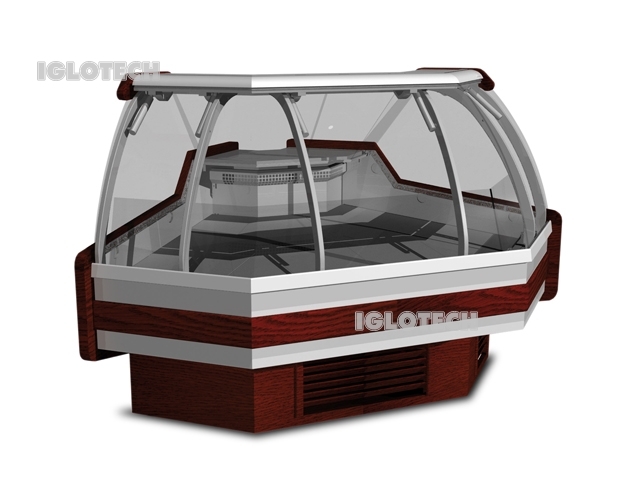

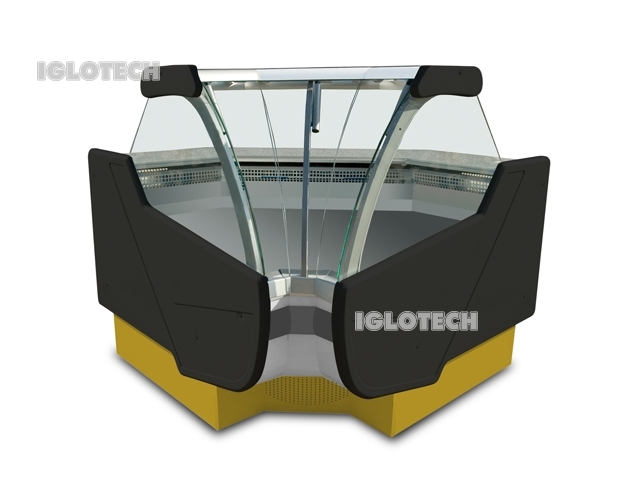

I-Santiago S wood veneer finish*	I-Santiago S Internal Corner*	I-Santiago S External Corner*

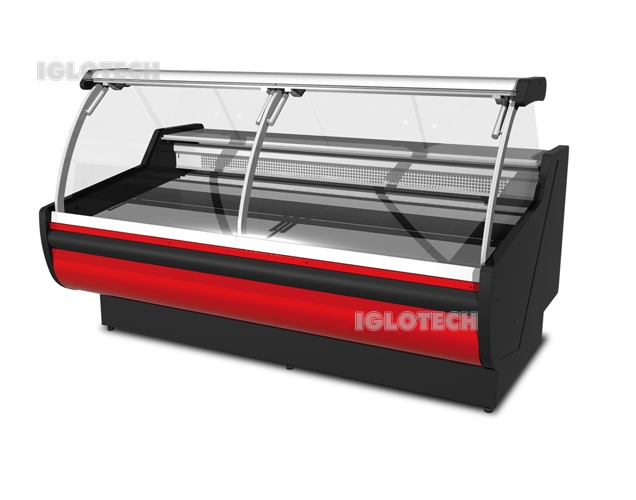

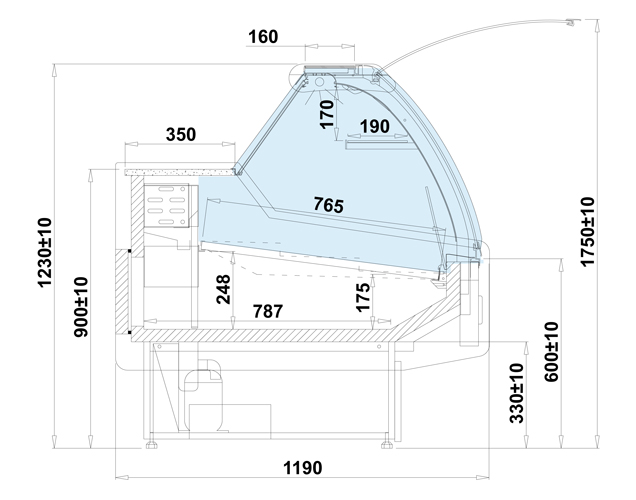

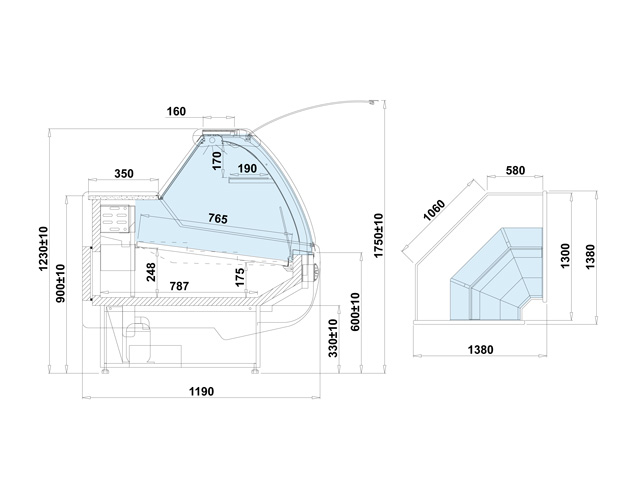

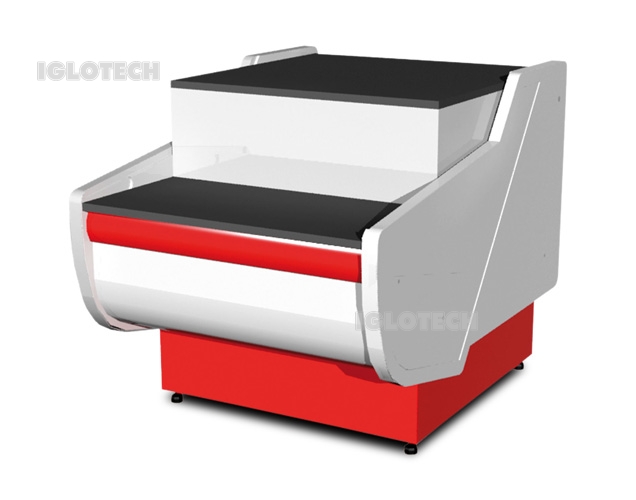

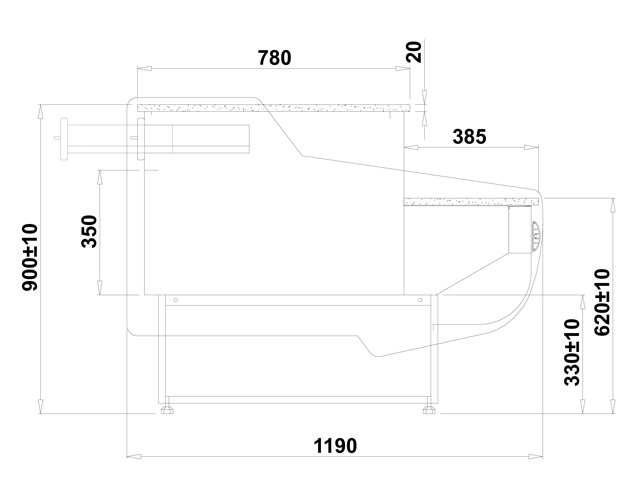

I-Santiago Cash Table*	I-Santiago S	I-Santiago S Internal Corner

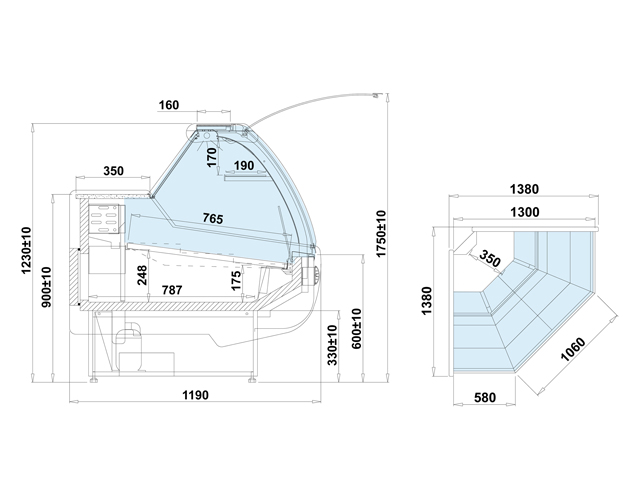

I-Santiago S External Corner	I-Santiago Cash Table

Technical parameters:

Models	Dimension [mm] H x W x D	Display surface [m²]	Power Consumption [kWh/24h]	Weight [kg]
I-Santiago 1.1 S	1230 x 1040 x 1190	0,80	3,40	145
I-Santiago 1.4 S	1230 x 1370 x 1190	1,00	3,50	165
I-Santiago 1.7 S	1230 x 1670 x 1190	1,20	4,40	195
I-Santiago 2.0 S	1230 x 2000 x 1190	1,50	4,60	220
I-Santiago 2.5 S	1230 x 2540 x 1190	1,90	6,20	295
I-Santiago 3.75 S	1230 x 3830 x 1190	2,90	12,40	435
I-Santiago S Internal Corner	1230 x 1380 x 1380	0,90	3,40	180
I-Santiago V External Corner	1230 x 1380 x 1380	1,10	3,70	155

Description:

temperature range +1 / +8°C
preferred ambient temperature +16 / +25°C
power supply 230V / 50Hz
internal condensing unit
ecological polyurethane insulation
external housing made of white coated steel - from staff side
base and front made of powder coated steel - white
aluminium glass frames colour - choice of colours
plastic front bumper - choice of colours
display deck depth 765mm
exposition surface made of stainless steel
refrigerated under-storage made of stainless steel
350mm width worktop - stainless or grey granite
electronic control with temperature display
automatic defrost system
static air circulation
curved front glass - telescopic lift system
interior LED lighting colour (meat)
water condensate tray
perspex sliding door to rear
ABS side walls (40mm thick) - choice of colours
1 year full warranty service and after warranty service provided

Available options:

multiplexing
prepared to work with external condensing unit
external housing made of stainles steel (staff side)
front panel colour - optional colours
base colour - optional colours
exposition area stepped (2 steps)
exposition area stepped (3 steps)
exposition area made of acid resistant stainless steel
storage chamber made of acid resistant stainless steel
powder painted evaporator
worktop made of granite (blamoral) 20mm thick
worktop made of granite (black) 20mm thick
LED light colour (white)
LED light colour (confectionary)
additional exposition glass shelf (ambient)
customer front shelf (aluminium profile gold or silver colour)
set of wheels (castors)
movable partition (glass on stands, placed in exposition area)
fixed top partition (high glass fixed in exposition area)
automatic condensate evaporation (internal condensing unit only)
analog thermometer
socket with fuse

Choice of colours:

Optional colours:

* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.
