I-Bermuda TL

Serve Over Counters » Refrigerated Serve Overs » I-Bermuda TL

I-Bermuda TL*

I-Bermuda TL*

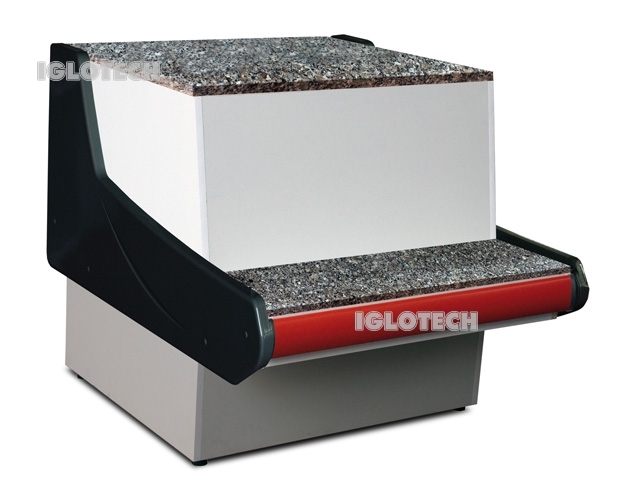

I-Bermuda Cash Table*

I-Bermuda Cash Table*

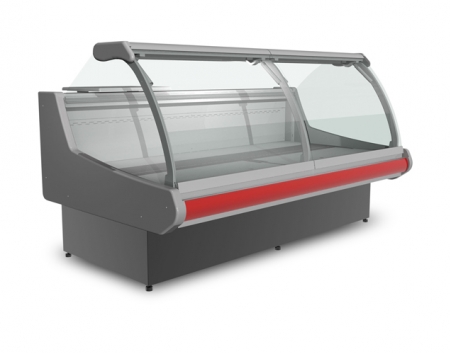

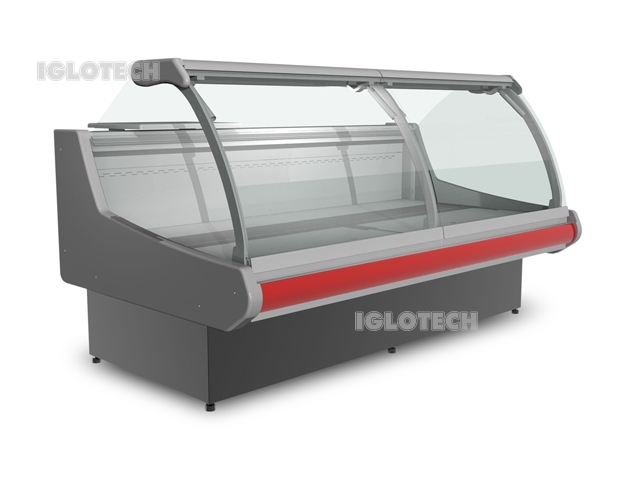

I-Bermuda TL

I-Bermuda TL

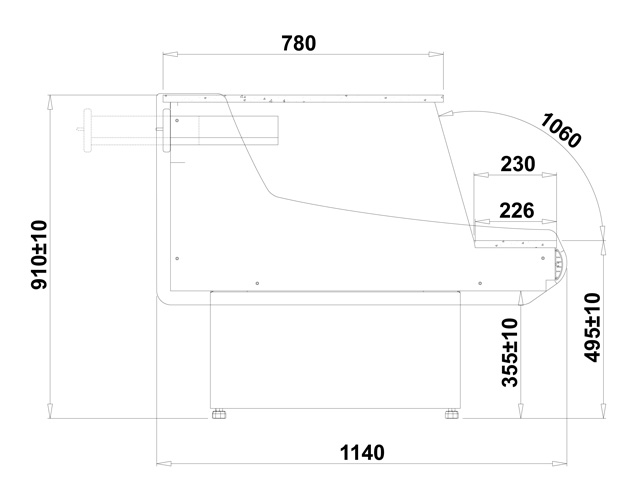

I-Bermuda TL cash table

I-Bermuda TL cash table

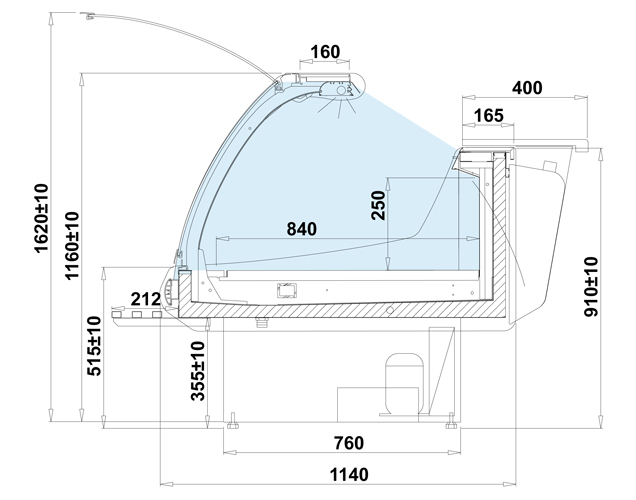

Technical parameters:

Models

Dimension [mm]

H x W x D

Display surface [m²]Power Consumption [kWh/24h]Weight [kg]
I-Bermuda 1.35 TL 1160 x 1350 x 1140 1,05 7,70 170
I-Bermuda 1.97 TL 1160 x 1975 x 1140 1,60 15,80 230
I-Bermuda 2.60 TL 1160 x 2600 x 1140 2,10 17,80 260
I-Bermuda 3.80 TL 1160 x 3830 x 1140 3,20 23,50 295





Description:

  • temperature range +1 / +8°C
  • preferred ambient temperature +16 / +25°C
  • power supply 230V / 50Hz
  • internal condensing unit
  • ecological polyurethane insulation
  • external housing from staff side made of white coated steel
  • base and front panel made of white coated steel
  • aluminium glass frames colour - choice of colours
  • plastic front bumper - choice of colours
  • display deck depth 840mm
  • exposition surface made of powder coated steel (white colour)
  • 165mm width stainless steel worktop
  • electronic control with temperature display
  • automatic defrost system - evaporator electric heaters
  • forced air circulation
  • curved front glass - telescopic lifting system
  • interior LED lighting (meat colour)
  • water condensate tray
  • perspex sliding door to rear
  • ABS side walls (40mm thick) - choice of colours
  • 1 year full warranty service and after warranty service provided



Available options:

  • multiplexing
  • external housing made of stainles steel (staff side)
  • front panel colour - optional colours
  • base colour - optional colours
  • front panel made of stainless steel
  • base made of stainless steel
  • exposition area and interior made of stainless steel
  • exposition area and interior made of acid resistant stainless steel
  • LED light colour (white)
  • LED light colour (confectionary)
  • customer front shelf (aluminium profile gold or silver colour)
  • set of wheels (castors)
  • small movable table
  • small movable table for knives
  • towel hang
  • movable partition (glass on stands, placed in exposition area)
  • fixed top partition (high glass fixed in exposition area)
  • automatic condensate evaporation (internal condensing unit only)
  • analog thermometer
  • socket with fuse



Choice of colours:







Optional colours:







* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.

Download
