I-Grenada

Serve Over Counters » Refrigerated Serve Overs » I-Grenada

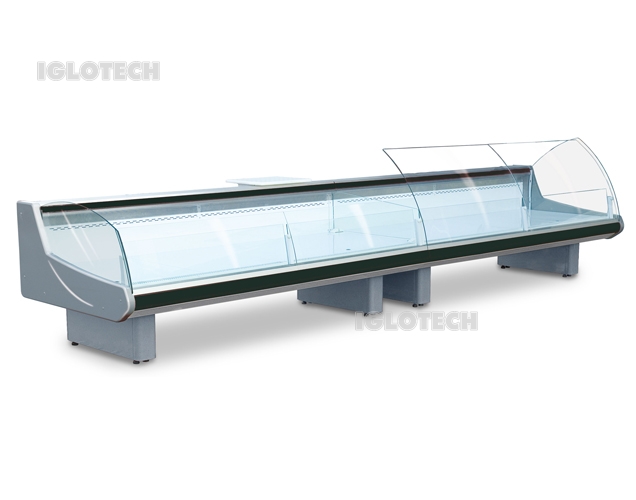

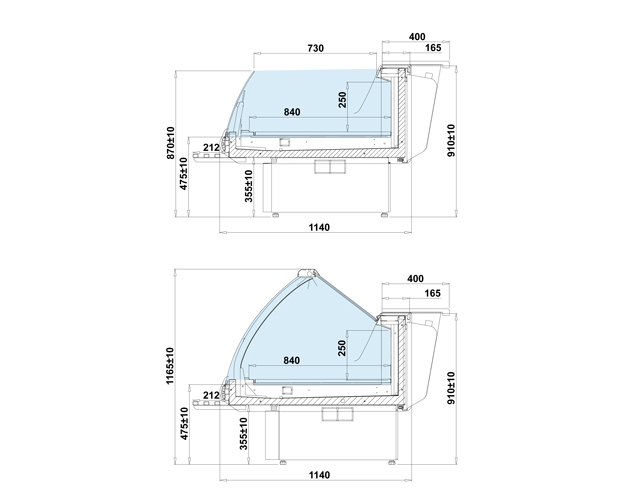

I-Grenada*

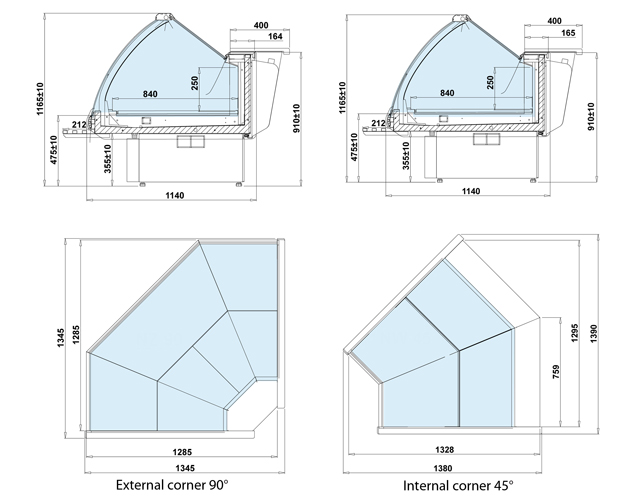

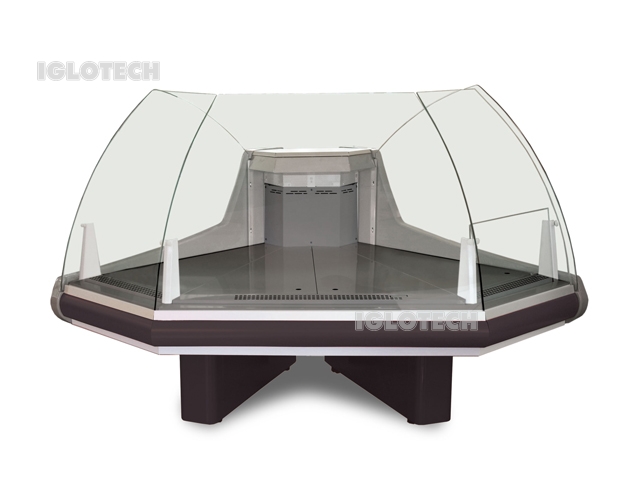

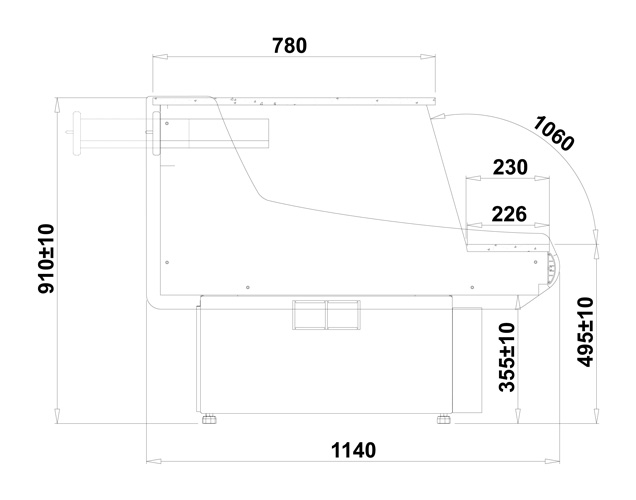

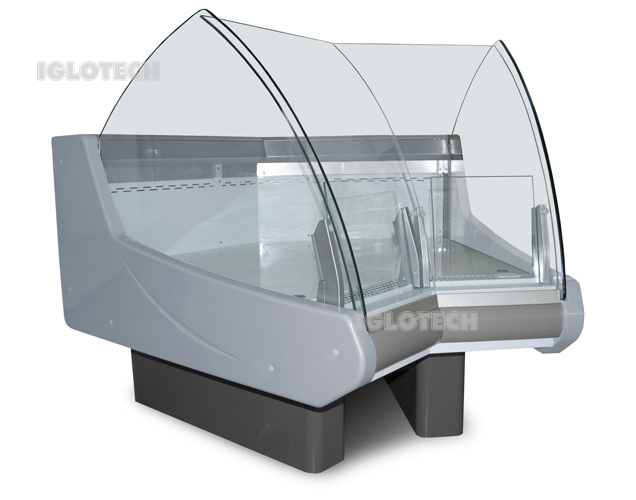

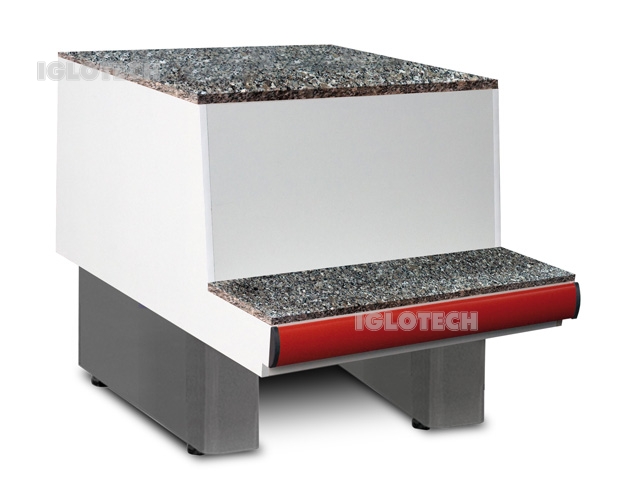

I-Grenada Internal Corner*	I-Grenada External Corner*	I-Grenada Cash Table*
I-Grenada	I-Grenada Corners	I-Grenada Cash Table

Technical parameters:

Models	Dimension [mm] H x W x D	Display surface [m²]	Power Consumption [kWh/24h]	Weight [kg]
I-Grenada 1.35	1165 x 1350 x 1140	1,05	2,50	160
I-Grenada 1.97	1165 x 1975 x 1140	1,60	3,10	220
I-Grenada 2.60	1165 x 2600 x 1140	2,10	4,10	250
I-Grenada 3.80	1165 x 3830 x 1140	3,20	6,20	285
I-Grenada External Corner	1165 x 1345 x 1345	1,12	1,30	120
I-Grenada Internal Corner	1165 x 1390 x 1380	0,87	2,00	115

Description:

temperature range +1 / +8°C
preferred ambient temperature +16 / +25°C
power supply 230V / 50Hz
prepaierd to work with external condensing unit
ecological polyurethane insulation
external housing made of white coated steel - from staff side
base and front made of powder coated steel - white
aluminium glass frames colour - choice of colours
plastic front bumper - choice of colours
display deck depth 840mm
exposition surface made of powder coated steel (white colour)
165mm width stainless steel worktop
electronic control with temperature display
automatic defrost system - evaporator electric heaters
forced air circulation
curved front glass - high or low
ABS side walls (40mm thick) - choice of colours
1 year full warranty service and after warranty service provided

Available options:

multiplexing
external housing made of stainles steel (staff side)
front panel colour - optional colours
base colour - optional colours
front panel made of stainless steel
base ”legs” made of stainless steel
additional base covering - powder coated steel (optional colours)
additional base covering made of stainless steel
exposition area and interior made of stainless steel
exposition area and interior made of acid resistant stainless steel
perspex night blinds - only with high glass
lamp with LED light colour (white) - only with high glass
lamp with LED light colour (meat) - only with high glass
lamp with LED light colour (confectionary) - only with high glass
customer front shelf (aluminium profile gold or silver colour)
small movable table
small movable table for knives
towel hang
movable partition (glass on stands, placed in exposition area)
fixed top partition (high glass fixed in exposition area)
analog thermometer
socket with fuse

Choice of colours:

Optional colours:

* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.
