J-Prague

Multideck Cabinets » Remote Multidecks » J-Prague

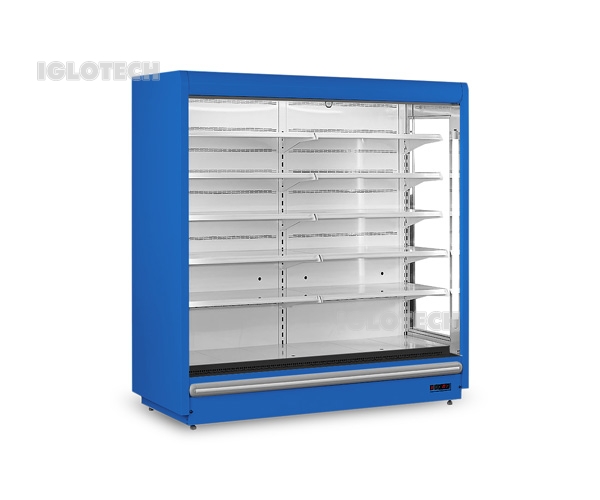

J-Prague*

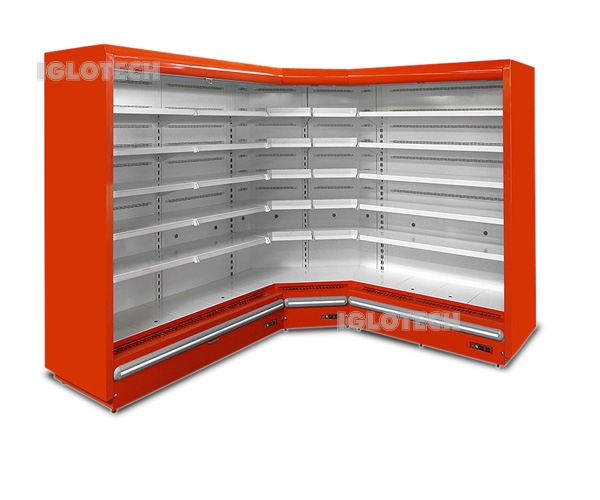

J-Prague*	J-Prague with Corner unit*	J-Prague

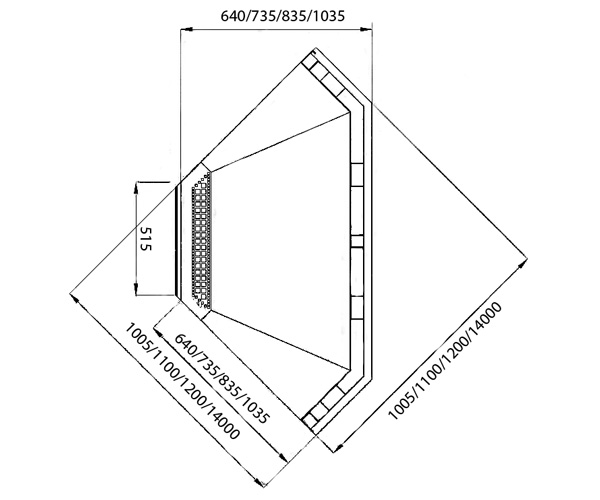

J-Prague Corner

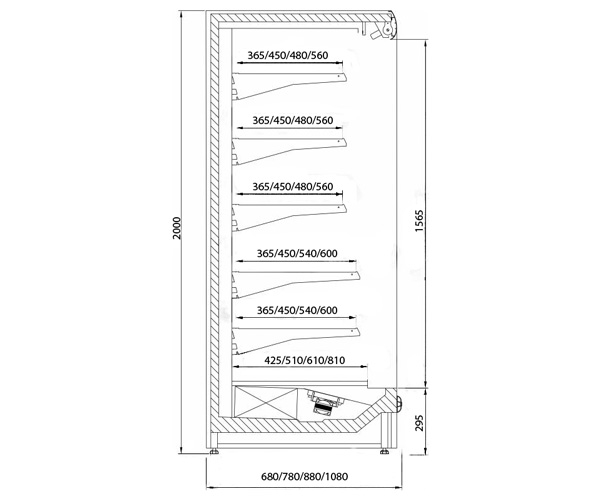

Technical parameters:

Models	Dimension [mm] H x W x D	Display surface [m²]	Shelves with low base	Condensing unit	Weight [kg]
J-Prague 120	2000 x 1200* x 680/780/880/1080	2,6/3,2/3,8/4,5	6	external	190/220/230/240
J-Prague 150	2000 x 1500* x 680/780/880/1080	3,3/3,9/4,7/5,5	6	external	240/260/270/280
J-Prague 180	2000 x 1800* x 680/780/880/1080	3,9/4,7/5,6/6,6	6	external	280/320/340/360
J-Prague 200	2000 x 1980* x 680/780/880/1080	4,3/5,2/6,1/7,4	6	external	320/340/350/380
J-Prague 240	2000 x 2400* x 680/780/880/1080	5,2/6,3/7,5/8,9	6	external	360/370/380/390
J-Prague 270	2000 x 2700* x 680/780/880/1080	5,9/7,1/8,5/10,0	6	external	390/420/430/450
J-Prague 300	2000 x 3000* x 680/780/880/1080	6,6/8,1/9,6/11,0	6	external	430/450/470/500
J-Prague 375	2000 x 3750* x 680/780/880/1080	8,3/10,1/12,0/12,8	6	external	530/560/580/620
J-Prague Corner 70	2000 x 1005 x 640	3,3	6	external	180
J-Prague Corner 80	2000 x 1100 x 735	3,9	6	external	200
J-Prague Corner 90	2000 x 1200 x 835	4,7	6	external	210
J-Prague Corner 110	2000 x 1400 x 1035	5,5	6	external	230

* - dimensions without side walls - set of side walls is 100mm thick

Description:

temperature range +2 / +8°C
preferred ambient temperature +16 / +25°C
power supply 230V / 50Hz
prepared to work with external condensing unit
ecological polyurethane insulation
body made of powder coated steel - choice of colours
interior and shelves in white colour
side walls - full, with glass or with mirror stainless steel sheet - choice of colours
night blind
adjustable shelves
price strips
LED interior top lighting
electronic control with digital temperature display
automatic defrost
adjustable legs
1 year full warranty service and after warranty service provided

Available options:

multiplexing
profile with hooks (instead of one row of shelves)
back panel made of stainless steel
shelves made of stainless steel
base shelves made of stainless steel
shelf edge risers - wired or perspex
meat hooks
side LED lights
LED lights under each shelf
defrost heaters in evaporator

Choice of colours:

* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.

Download

J-Prague catalogue card.pdf
