I-Gastroline B

Serve Over Counters » Heated Serve Overs » I-Gastroline B

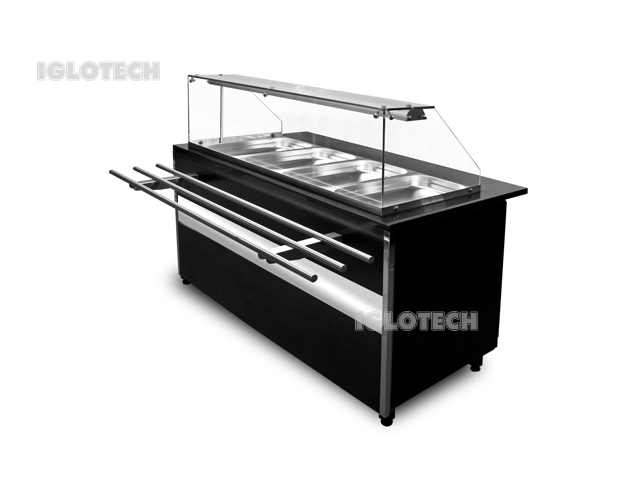

I-Gastroline B*

I-Gastroline B*

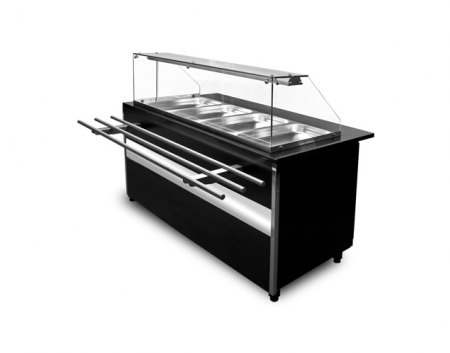

I-Gatroline B

I-Gatroline B

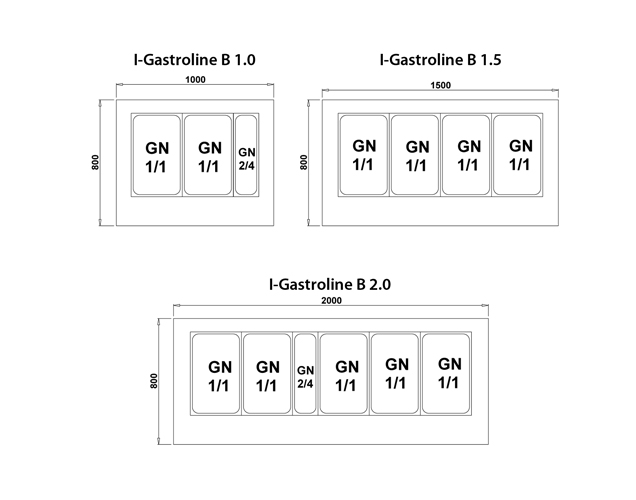

GN trays layout

GN trays layout

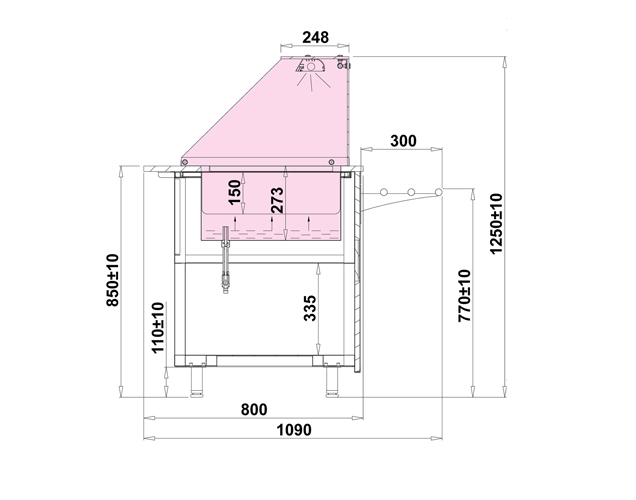

Technical parameters:

Models

Dimension [mm]

H x W x D

Power Consumption [kWh/24h]Weight [kg]
I-Gastroline B 1.0 1250 x 1000 x 800 12,90 120
I-Gastroline B 1.5 1250 x 1500 x 800 19,30 140
I-Gastroline B 2.0 1250 x 2000 x 800 25,80 180





Description:

  • temperature range +30 / +90°C
  • power supply 230V / 50Hz - I-Grastroline B 1.0, 1.5
  • power supply 400V / 50Hz - I-Grastroline B 2.0
  • mineral wool insulation
  • external housing made of black coated steel
  • front panel made of black melamine
  • front panel decoration - glass mirror or stainless steel strip
  • bain marie basin made of acid resistant stainless steel
  • frame prepared for GN trays
  • 20mm thick grey granite worktop
  • glass top with straight front glass
  • fluorescent lamp
  • temperature regulator
  • 1 year full warranty service and after warranty service provided



Available options:

  • external housing made of stainles steel
  • external housing made of acid resistant stainles steel
  • external housing colour - optional colours
  • front panel colour - optional colours and wood patterns
  • worktop made of stainless steel
  • worktop made of acid resistant stainles steel
  • worktop made of granite (grey) 30mm thick
  • worktop made of granite (balmoral) 20mm thick
  • worktop made of granite (balmoral) 30mm thick
  • worktop made of granite (black) 20mm thick
  • worktop made of granite (black) 30mm thick
  • customer front shelf - stainless steel
  • set of wheels (castors)
  • GN 1/1 150mm deep tray
  • GN 2/4 150mm deep tray



Optional colours:











* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.
